Patent slab design
Built-in Wi-Fi for free
Auto defrost
Environmentally Friendly
COP up to 12.5
EEV technology
Patent slab designBuilt-in Wi-Fi for freeAuto defrostEnvironmentally FriendlyCOP up to 12.5EEV technologyPatent slab designBuilt-in Wi-Fi for freeAuto defrostEnvironmentally FriendlyCOP up to 12.5EEV technology

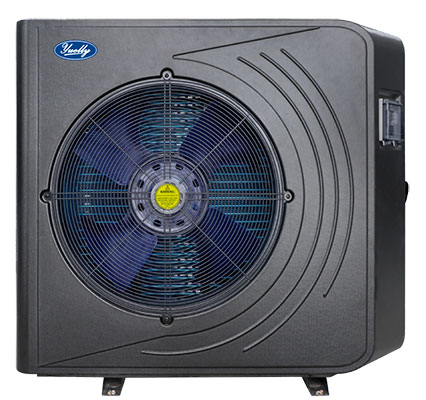

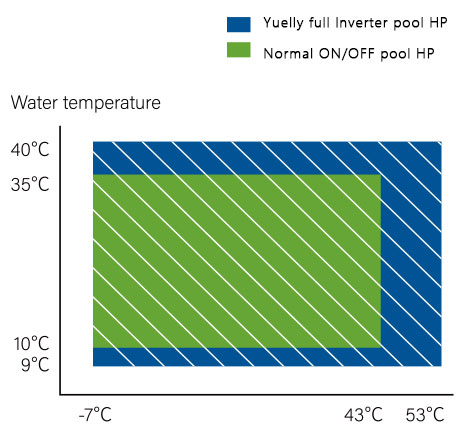

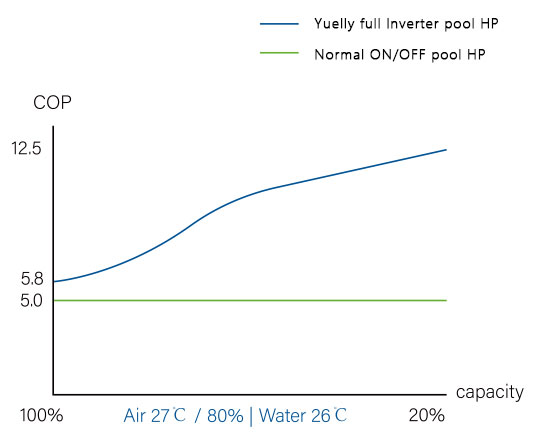

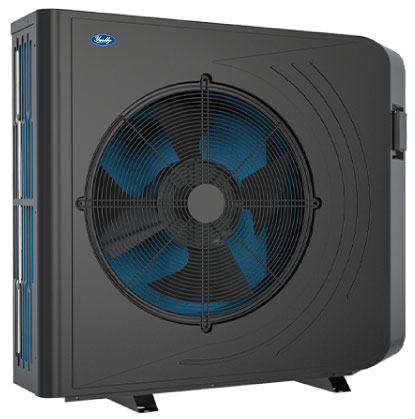

YUELLY Full Inverter pool heat pumps can reach a COP as high as 12.5 at the ambient condition (Air 27C/ Humidity 80%) and keep a high EER at 53 C ambient temperature.
| Model | SDR-3008-F | SDR-3011-F | SDR-3016-F | SDR-3019-F | SDR-3021-F | SDR-3026-F | |
|---|---|---|---|---|---|---|---|
| Performance (Heating) | |||||||
| A27°C/24.3℃, W26℃ | Heating Capacity (kW) Consumed power (kW) COP |
2.50 ~ 7.80 0.17 ~ 1.16 14.70 ~ 6.72 |
3.49 ~ 11.20 0.31 ~ 1.71 11.26 ~ 6.55 |
5.82 ~ 16.1 0.50 ~ 2.43 11.64 ~ 6.63 |
5.90 ~ 18.5 0.50 ~ 2.78 11.8 ~ 6.65 |
8.15 ~ 21.2 0.74 ~ 2.83 11.01 ~ 7.51 |
8.3 ~ 26.0 0.75 ~ 4.20 11.07 ~ 6.19 |
| A15℃/12℃, W26℃ | Heating Capacity (kW) Consumed power (kW) COP |
1.81 ~ 6.05 0.20 ~ 1.09 9.05 ~ 5.55 |
2.58 ~ 8.90 0.30 ~ 1.69 8.6 ~ 5.27 |
4.00 ~ 12.4 0.48 ~ 2.41 8.33 ~ 5.15 |
4.05 ~ 14.1 0.49 ~ 2.75 8.27 ~ 5.13 |
5.96 ~ 17.0 0.72 ~ 2.96 8.28 ~ 5.73 |
6.06 ~ 20.2 0.73 ~ 4.05 8.30 ~ 4.99 |
| Performance(Cooling) | |||||||
| A45℃/-℃, W40℃ | Cooling Capacity (kW) Consumed power (kW) EER |
1.23 ~ 3.55 0.41 ~ 1.65 3.00 ~ 2.15 |
1.56 ~ 4.62 0.51 ~ 2.20 3.06 ~ 2.10 |
2.55 ~ 7.1 0.82 ~ 3.1 3.11 ~ 2.29 |
2.55 ~ 7.1 0.82 ~ 3.1 3.11 ~ 2.29 |
3.2 ~ 11.9 1.06 ~ 6.0 3.02 ~ 1.98 |
3.2 ~ 13.2 1.06 ~ 6.8 3.02 ~ 1.94 |
| A35℃/24℃, W30℃ | Cooling Capacity (kW) Consumed power (kW) EER |
1.35 ~ 5.03 0.36 ~ 1.65 3.75 ~ 3.05 |
1.6 ~ 6.5 0.45 ~ 2.2 3.56 ~ 2.94 |
2.8 ~ 9.3 0.65 ~ 3.1 4.31 ~ 3.00 |
2.8 ~ 9.3 0.65 ~ 3.1 4.31 ~ 3.00 |
3.3 ~ 13.6 0.86 ~ 4.6 3.84 ~ 2.96 |
3.3 ~ 14.5 0.86 ~ 5.7 3.84 ~ 2.54 |
| Technical data | |||||||
| Power Supply | 220-240V~/50Hz | ||||||
| Max. Power Input Max. Current |
kW A |
1.65 7.2 |
2.2 9.5 |
2.2 9.5 |
2.2 9.5 |
4.5 20 |
5.5 28 |
| Throttling device Compressor Quantity |
– – |
EEV 1 |
|||||
| Fan Quantity | PCS | 1 | |||||
| Airflow Volume(max) Sound Pressure 1m Water Connection Water Flow Volume |
m3/h dB(A) mm m3/h |
1800 36-47 50 3.40 |
1800 38-49 50 4.80 |
1800 38-49 50 4.80 |
1800 38-49 50 4.80 |
3500 43-52 50 9.10 |
3500 43-52 50 11.20 |
| Refrigerant Operating air temperatur e (°C) |
– – |
R32/R410A -12~52 |
|||||
| OPERATION PRESSURE(LOW OPERATION PRESSURE(HIGH Net Weight |
Mpa MPa kg |
2.1 4.4 33 |
2.1 4.4 35 |
2.1 4.4 35 |
2.1 4.4 35 |
2.1 4.4 83 |
2.1 4.4 85 |
