<30dB(A)
AUTO Dehumidify
Smart App Remote Control
Dry the clothes
Fast & Stable Hot Water Supply
Purification air<30dB(A)AUTO DehumidifySmart App Remote ControlDry the clothesFast & Stable Hot Water SupplyPurification air<30dB(A)AUTO DehumidifySmart App Remote ControlDry the clothesFast & Stable Hot Water SupplyPurification air

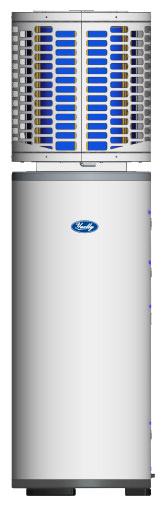

HNG is classified in the highest energy efficiency
class: it is the best solution for both new-builds
and renovation projects.

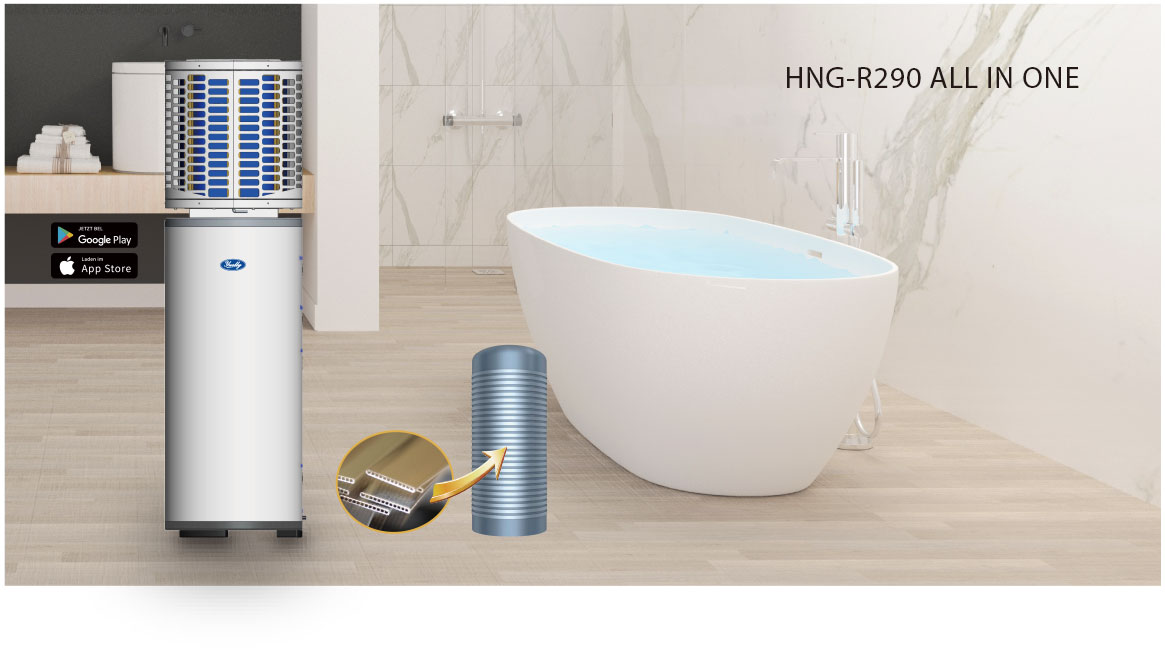

Micro chanel auxiliary electric heating coil
The high reliabilty through micro chanel auxiliary
electric heating coil with with all-aluminum
structure mpotential prevents glavanic corrosion.
The best solution to produce the inside hot
water, it is also the most economical and
ecofriendly.
It extracts free calories from the air right down to
an outdoor temperature of-7°C, supplies domestic
hot water and maintains it at 80°℃ by using only
the heat pump.
It is ultra-quiet and can easily be installed in your living space
| Model | R290 | HNG909 | HNG915 |
|---|---|---|---|
| Power supply | V/Ph/ Hz | 230/1/50 | 230/1/50 |
| Heating capacity | W | 900 | 1500 |
| Water tank volume | L | 100 | 200 |
| Power input | W | 245 | 410 |
| Heating current | A | 1.1 | 1.8 |
| auxiliary heating | KW | 1.5 | 1.5 |
| Rated power input | KW | 1.92 | 2.3 |
| Hot water temperature range | °C | 30~75 | |
| Operating temperature range | °C | -15~43 | |
| Refrigerant type | – | R290 | |
| Refrigerant charge | g | 150 | |
| Water proof level | – | IPX4 | |
| Isolation | I | ||
| Air flow direction | – | On the side | |
| Water tank max water pressure | Mpa | 1 | |
| Operation pressure (low side) | Mpa | 1.3 | |
| Operation pressure (high side) | Mpa | 3.2 | |
| Water inlet/outlet pipe | – | G 1/2” | G 3/4” |
| Unit dimension | mm | Ф570X1600 | Ф570X1830 |
| Net weight | KG | 70 | 99 |
| Power input | KG | 78 | 110 |
| Measurement conditions: Instant heating: Ambient temperature 20°C/15°C,Water inlet 15°C Water outlet 55°C | |||
