24hr Built-in Timer
Heat Recovery
With environmental refrigerant
Optional heater and water filter
Operating Range-10°C to 43 °C
R290 is better value for money than R32 and natural gas not produced synthetically. It’s almost zero greenhouse effect(GWP:3). R290 has unique performance and efficiency and excellent working temperature special can be water temperature heat up to 70 ℃ without additional electrical support.

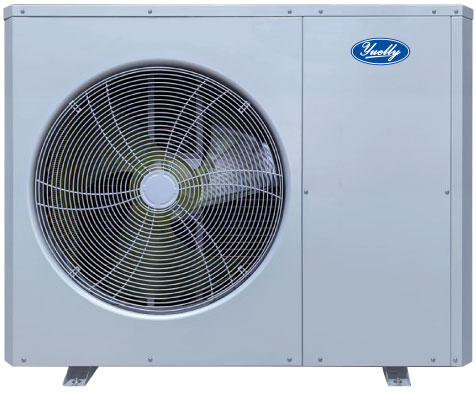

| Model | EDM9006 | EDM9008 | EDM9010 | EDM9010S | EDM9010S | EDM9016S | ||
|---|---|---|---|---|---|---|---|---|
| Power Supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | |
| A7W35 | Nominal heating capacity | kW | 6.0 | 8.2 | 10.0 | 10.0 | 10.0 | 13.0 |
| Nominal power consumption | kW | 1.29 | 1.68 | 2.08 | 2.08 | 2.08 | 3.33 | |
| COP | W/W | 4.65 | 4.90 | 4.80 | 4.80 | 4.80 | 4.80 | |
| Heating capacity Min./Max | kW | 2.7~8.6 | 3.20~11.50 | 4.00~15.5 | 4.00~15.5 | 4.00~15.5 | 6.30~22.0 | |
| A7W55 | Nominal heating capacity | kW | 5.8 | 8.0 | 10.0 | 10.0 | 10.0 | 16.0 |
| Nominal power consumption | kW | 1.92 | 2.58 | 3.33 | 3.33 | 3.33 | 5.16 | |
| COP | W/W | 3.02 | 3.10 | 3.00 | 3.00 | 3.00 | 3.10 | |
| Heating capacity Min./Max | kW | 2.5~8.0 | 4.20~10.30 | 5.40~16.0 | 5.40~16.0 | 5.40~16.0 | 7.90~20.20 | |
| A35W18 | Nominal heating capacity | kW | 6.0 | 8.0 | 11.0 | 11.0 | 11.0 | 16.0 |
| Nominal power consumption | kW | 1.50 | 2.00 | 2.68 | 2.68 | 2.68 | 4.37 | |
| EER | W/W | 4.00 | 4.00 | 4.10 | 4.10 | 4.10 | 3.66 | |
| Cooling capacity Min./Max. | kW | 3.0~9.8 | 3.4~11.0 | 5.0~16.0 | 5.0~16.0 | 5.0~16.0 | 6.90~22 | |
| A35W7 | Nominal heating capacity | kW | 5.0 | 6.5 | 10.0 | 10.0 | 10.0 | 14.0 |
| Nominal power consumption | kW | 1.75 | 2.17 | 3.45 | 3.45 | 3.45 | 5.83 | |
| EER | W/W | 2.86 | 3.00 | 2.90 | 2.90 | 2.90 | 2.40 | |
| Cooling capacity Min./Max. | kW | 2.1~6.9 | 2.7~9.0 | 3.9~13.0 | 3.9~13.0 | 3.9~13.0 | 5.2~17.5 | |
| Rated power consumption | Kw | 3.9 | 5.1 | 6.9 | 7.8 | 7.8 | 10.5 | |
| Rated current | A | 17.0 | 22.0 | 30.0 | 16.5 | 16.5 | 22.0 | |
| Compressor | Type-Quantity/System | – | Twin Rotary-1 | Twin Rotary-1 | Twin Rotary-1 | Twin Rotary-1-EVI | Twin Rotary-1-EVI | Twin Rotary-1-EVI |
| Fan | Type | – | DC | DC | DC | DC | DC | DC |
| Quantity | – | 1 | 1 | 1 | 1 | 1 | 2 | |
| Rated airflow | m3/h | 2400 | 3000 | 4000 | 4000 | 4000 | 6000 | |
| Rated power | W | 60 | 120 | 200 | 200 | 200 | 240 | |
| Sound power level | dB | 59 | 60 | 62 | 62 | 62 | 63 | |
| Water Side Heat Exchanger | Type | – | Double walled Plate | Plate | ||||
| Water pressure drop | kPa | 10 | 25 | 30 | 30 | 30 | 40 | |
| Piping connection | – | G3/4″ | G1″ | G1″ | G1″ | G1″ | G1″ | |
| Available external presurre head | m | 5 | 6 | 5.5 | 5.5 | 5.5 | 6 | |
| Nominal flow of heating medium | m3/h | 1.00 | 1.40 | 1.70 | 1.70 | 1.70 | 2.75 | |
| Minimum heating medium flow | m3/h | 0.5 | 0.60 | 0.70 | 0.70 | 0.70 | 1.20 | |
| Operating temperature range | Heating | ℃ | -25~45 | |||||
| Cooling | ℃ | 5~45 | ||||||
| DHW | ℃ | -25~45 | ||||||

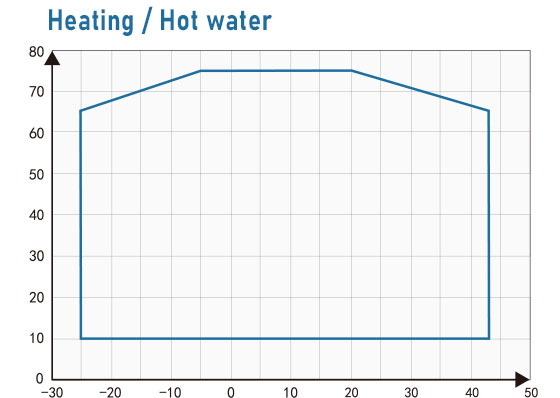

| LWT range | Heating | ℃ | 15~75 | |||||

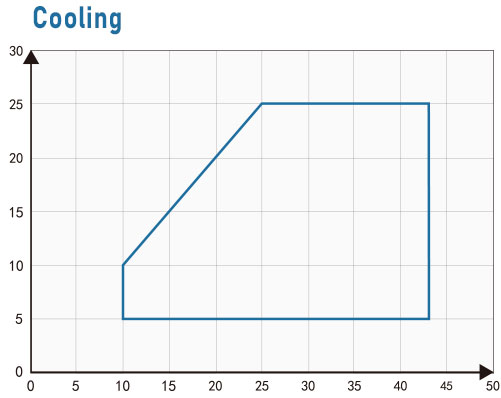

| Cooling | ℃ | 5~25 | ||||||
| DHW | ℃ | 15~70 | ||||||
| Refrigerant | Type | – | R290 | |||||
| GWP | 3 | |||||||
| Charged volume | kg | 0.7 | 0.85 | 1.10 | 1.10 | 1.10 | 1.50 | |
| kg C02 eq (100 years) | 0.0021 | 0.00255 | 0.0033 | 0.0033 | 0.0033 | 0.0045 | ||
| Operation Pressure | Low side | Mpa | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| High side | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |
| Gross weight | kg | 115 | 120 | 170 | 170 | 170 | 210 | |
